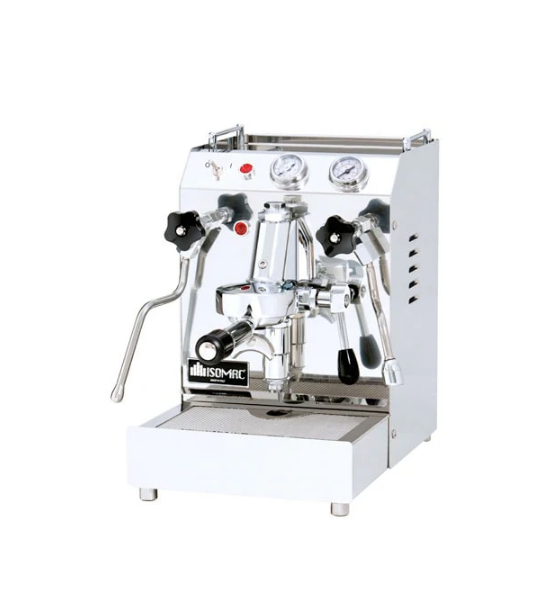

Isomac Coffee Machine Steam Pressure Pegged to Maximum? Here's the Cause
Your Isomac espresso machine's boiler pressure gauge climbs past the normal operating zone — straight through 1.2 bar, past 1.5 bar, and keeps going. Then the safety relief valve pops open and steam hisses violently inside the casing. This is a serious fault that needs immediate attention. But the cause is almost always the same component: a failed pressurestat with its internal contacts welded shut.
⚠️ Switch the Machine Off Immediately
If your boiler pressure is climbing into the red and the safety relief valve is venting steam, turn the machine off at the wall right away. Do not continue operating it. The safety relief valve is a last-resort protection device — it is not designed for repeated operation. Allow the machine to cool fully before inspecting.
What's Actually Happening
Under normal operation, the pressurestat (also called a pressure switch) is the component that controls boiler temperature on your Isomac. It monitors boiler pressure and cycles the heating element on and off to maintain a stable set point — typically around 1.0–1.2 bar for most Isomac models. When pressure reaches the set point, the pressurestat opens its internal contacts and cuts power to the element. When pressure drops, it closes the contacts and the element heats again.
The failure mode is well understood: the internal contacts weld themselves shut.
Every switching cycle creates a small electrical arc across the pressurestat contacts. Over thousands of cycles and years of use, this arcing gradually erodes the contact surfaces and eventually fuses them together in the closed (on) position. The pressurestat can no longer open — so it never cuts power to the element. The element runs continuously, boiler pressure climbs unchecked, and the safety relief valve opens to prevent the boiler from exceeding its pressure limit.
Isomac machines use either a Sirai or Mater pressurestat depending on the model and production year. Both are quality Italian-made components, but both are subject to this contact-welding failure mode over time. It is a normal wear item — not a sign of a poorly maintained machine.
How to Confirm It's the Pressurestat
- Unplug the machine and allow it to cool completely — at least 60 minutes after the relief valve has vented. Confirm all pressure has dissipated before opening the machine.
- Remove the panel to access the pressurestat — a small cylindrical component mounted on or near the boiler, with two electrical spade terminals and a pressure sensing connection to the boiler.
- Disconnect the two spade terminals (photograph first) and set a multimeter to resistance (Ω) or continuity mode.
- Touch the probes to both pressurestat terminals. At zero pressure, the contacts should be closed (continuity / low resistance) — this is normal. The fault is that they stay closed as pressure builds and never open.
- In practice: if your gauge is pegging to maximum and the relief valve is opening, the pressurestat is the confirmed cause in the vast majority of cases. Replace it directly.
💡 Tip: While the machine is open, inspect the safety relief valve carefully. If it has been venting repeatedly under overpressure, its internal seal may have been damaged — causing it to weep or drip even at normal pressure after the repair. If in doubt, replace the relief valve at the same time.
How to Replace the Pressurestat
What You'll Need
- Replacement pressurestat (Sirai or Mater — matched to your Isomac model)
- Phillips and flathead screwdrivers
- Adjustable spanner
- PTFE tape
- Phone to photograph wiring
- Towel for residual water
Replacement Steps
- Unplug the machine and allow it to cool and fully depressurise. Open the steam wand briefly (cloth ready) to confirm zero pressure before opening the machine.
- Remove the panel to access the boiler and pressurestat.
- Photograph all wiring before disconnecting anything.
- Disconnect the spade terminals from the pressurestat.
- Unscrew the pressurestat anticlockwise from its boiler port. Have a cloth ready for residual water.
- Wrap the thread of the new pressurestat with 2–3 layers of PTFE tape.
- Thread in by hand first, then tighten firmly with the spanner — do not overtighten.
- Reconnect the terminals in the correct orientation as per your photograph.
- Reassemble the panel, refill the water tank, and power on. Watch the pressure gauge carefully during the first heat-up — it should stabilise at the normal operating pressure and the element should cycle on and off as expected. The relief valve should remain closed.
🛒 Shop Isomac Replacement Parts
We stock the correct pressurestat and safety relief valve for Isomac espresso machines:
Frequently Asked Questions
Is it safe to keep using the machine while the pressure is maxing out?
No — switch it off immediately. The safety relief valve is the last line of defence against boiler overpressure. Running the machine in this condition risks damaging the boiler, the relief valve, and internal fittings, and poses a serious burn hazard from steam venting inside the casing.
What's the difference between a Sirai and Mater pressurestat?
Both are Italian-made pressure switches used across different Isomac models and production years. They perform the same function but have different body dimensions, thread sizes, and pressure set points. It's critical to fit the correct one for your specific machine — the wrong pressurestat will result in incorrect operating pressure. Contact us to confirm which one your Isomac uses.
Can I adjust the pressurestat instead of replacing it?
No. If the contacts are welded shut, adjustment will not fix the fault — the component must be replaced. Adjustment is only relevant when the pressurestat is functioning correctly but the set pressure needs fine-tuning.
My safety relief valve is now dripping after the repair — why?
Repeated actuation under overpressure can damage the relief valve's internal seal, causing it to weep at normal operating pressure even after the pressurestat is replaced. If this happens, replace the safety relief valve — we stock the correct part for Isomac machines above.
How long does a pressurestat typically last?
On a well-used home machine (2–4 shots per day), a pressurestat typically lasts 8–15 years before contact welding becomes an issue. Hard water, voltage spikes, and high-frequency use can shorten this lifespan. It is a normal end-of-life failure, not a sign of a poorly maintained machine.
