Rancilio Silvia Steam Switch - 34030038

This genuine Rancilio Silvia steam switch 34030038 controls steam-mode selection on compatible Silvia espresso machines. It is an illuminated rocker switch rated at 16A 250V, designed for a 22 × 30 mm panel opening.

It is a replacement option when the existing switch is damaged, intermittent or no longer operates correctly, once the fault has been diagnosed and the correct part confirmed.

Specifications

• Component: steam-mode selector switch
• Part number: 34030038
• Listed application: compatible Rancilio Silvia espresso machines
• Switch type: illuminated rocker
• Electrical rating: 16A 250V
• Panel opening: 22 × 30 mm

What is included?

1 × Rancilio Silvia steam switch.

Compatibility and installation

Confirm part number 34030038 against your Silvia parts diagram before ordering. Exact model versions are not supplied. Compare the original switch's rating, terminal arrangement and panel fit; a similar appearance or matching panel size alone does not establish compatibility.

Professional installation is recommended for this mains-voltage electrical component. Disconnect power and allow the machine to cool before servicing. Wiring must follow the machine's correct wiring diagram.

Frequently asked questions

What does the Silvia steam switch do?

It selects steam mode on compatible Rancilio Silvia espresso machines. It is not listed as a replacement for the main power switch or brew switch.

What part number should I check?

Match reference 34030038 with your machine's parts diagram and the original component before ordering.

What are the rating and panel dimensions?

The listed electrical rating is 16A 250V and the panel opening is 22 × 30 mm. The panel opening is not the overall switch size.

Is this switch illuminated?

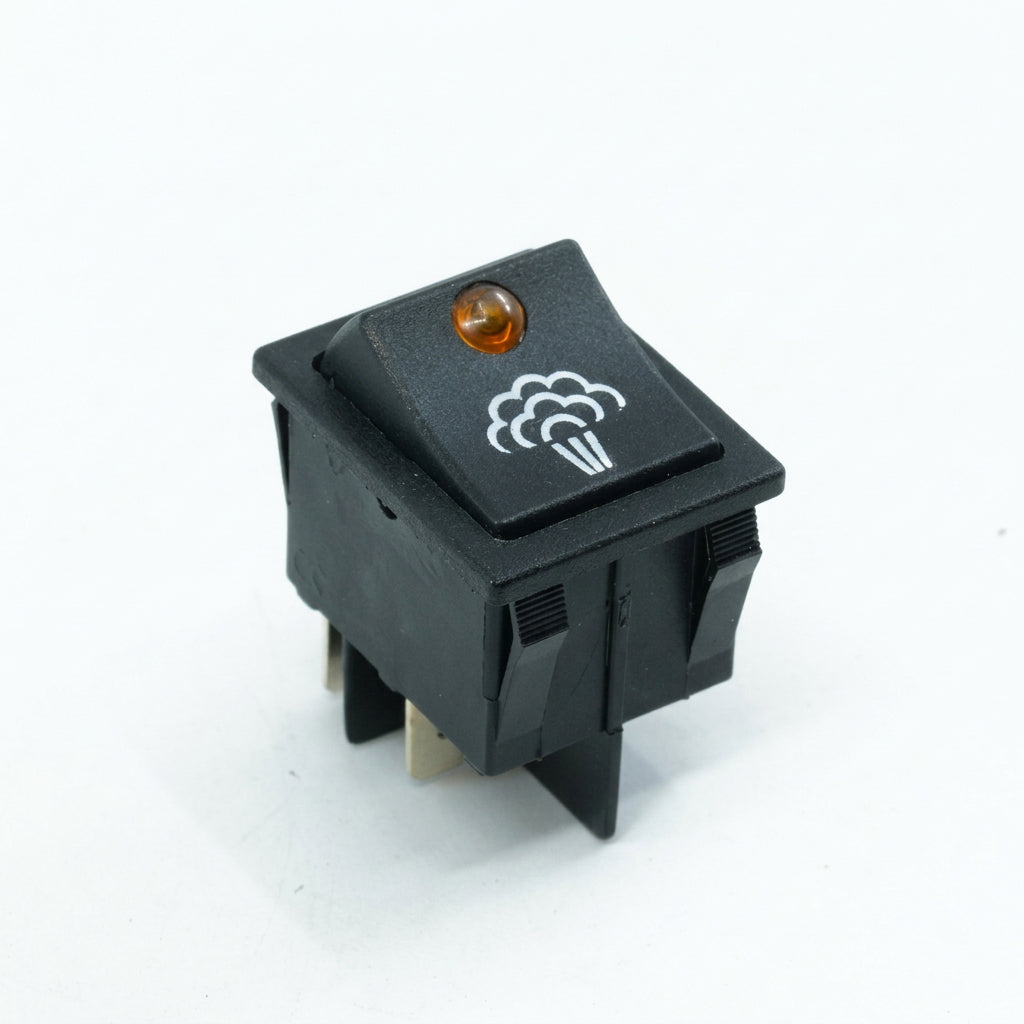

Yes. The existing listing identifies an illuminated rocker, and the front photo shows an amber indicator and a steam symbol.

Will replacing it fix a machine that will not steam?

Only if the switch is the diagnosed cause. Steam-mode faults may involve other components, so have a qualified technician test the machine before replacing the switch. Do not bypass controls or guess terminal connections.

Need help checking fitment? Contact Bear Coffee Machine with your Silvia version and clear photos of the original switch, markings and terminals.
