La Scala Butterfly Heating Element C-0520 – 1350W 220V with Free Gasket

La Scala Butterfly Heating Element C-0520 with Free Gasket

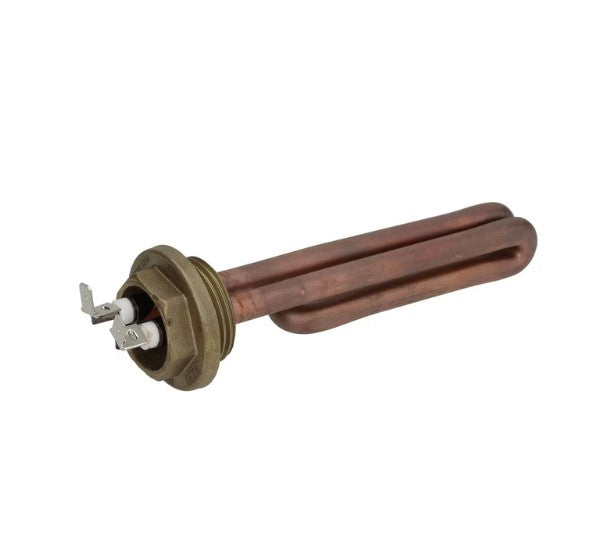

Replacement heating element listed for the La Scala Butterfly coffee machine, supplied with a free gasket. This 1350W, 220V element has a listed length of 130 mm, a 1" BSP connection and a two-pole configuration. Match these specifications and the part references to your existing element before ordering.

Specifications

• Listed application: La Scala Butterfly coffee machine
• Part reference: La Scala C-0520
• Additional reference: 1755348
• Power: 1350W
• Voltage: 220V
• Listed element length: 130 mm
• Connection: 1" BSP
• Configuration: two-pole
• Included: heating element and free gasket

Compatibility and installation

Check your machine's parts documentation and compare the original element's voltage, wattage, length, thread, terminal arrangement and part references. The model name alone does not confirm compatibility with every production version.

Contact Bear Coffee Machine with your machine details and photos of the original element and its markings if you need help identifying the correct replacement.

Installation should be carried out by an appropriately qualified technician. Disconnect mains power, allow the machine to cool and fully depressurise it before servicing. The technician should check the seal, electrical safety and operation after replacement.

Frequently asked questions

Which heating element is listed for the La Scala Butterfly?

This listing is for a 1350W, 220V heating element with references C-0520 and 1755348, a listed length of 130 mm and a 1" BSP connection. Confirm these details against your original part before purchase.

Does the heating element include a gasket?

Yes. A free gasket is included with this heating element.

What size is the heating element connection?

The listed connection is 1" BSP. Check the thread and element dimensions against your machine's requirements.

Will this fix a La Scala Butterfly that is not heating?

A replacement element is appropriate when the existing element has been diagnosed as faulty. A no-heat symptom alone does not confirm element failure; have a technician diagnose the machine before ordering.

Can I install this heating element myself?

Professional installation is recommended because replacement involves mains electrical connections and the boiler's pressure seal. An appropriately qualified technician should confirm suitability and test the machine after installation.
