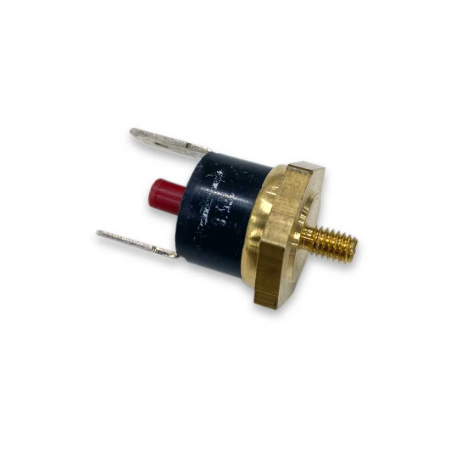

Elba 969 Coffee Machine Boiler Contact Thermostat – 145°C, M4 Mounting

Elba 969 Coffee Machine Boiler Contact Thermostat – 145°C, M4 Mounting

Replace a faulty boiler contact thermostat on your Elba 969 espresso machine with this OEM-spec replacement. Rated at 145°C and mounted via M4 thread, this thermostat monitors boiler temperature and cuts power to the heating element if the boiler overheats — protecting the machine from thermal damage.

Specifications

• Compatible Model: Elba 969
• Type: Boiler Contact Thermostat (Thermal Cutout)
• Temperature Rating: 145°C
• Mounting: M4 thread
• Body: Brass
• Terminals: Spade connectors (×2)
• Reset: Manual reset button (red)
• Condition: New / OEM quality
• Vendor: Elba

Symptoms of a Faulty Boiler Thermostat

• Machine not heating up at all
• Boiler overheating or cycling incorrectly
• Machine tripping the circuit breaker
• Thermostat body visibly burnt or damaged

Frequently Asked Questions

What does a contact thermostat do?

A contact thermostat (also called a thermal cutout or klixon) is a safety device that monitors boiler temperature. If the boiler exceeds the rated temperature (145°C in this case), the thermostat opens the circuit and cuts power to the heating element. On manual-reset models, the red button must be pressed to restore power after a trip.

How do I know if my thermostat has tripped?

If your machine suddenly stops heating and won’t heat up again, check the thermostat for a popped red reset button. Press it firmly to reset. If the machine trips repeatedly, there is an underlying overheating issue that should be investigated by a technician.
