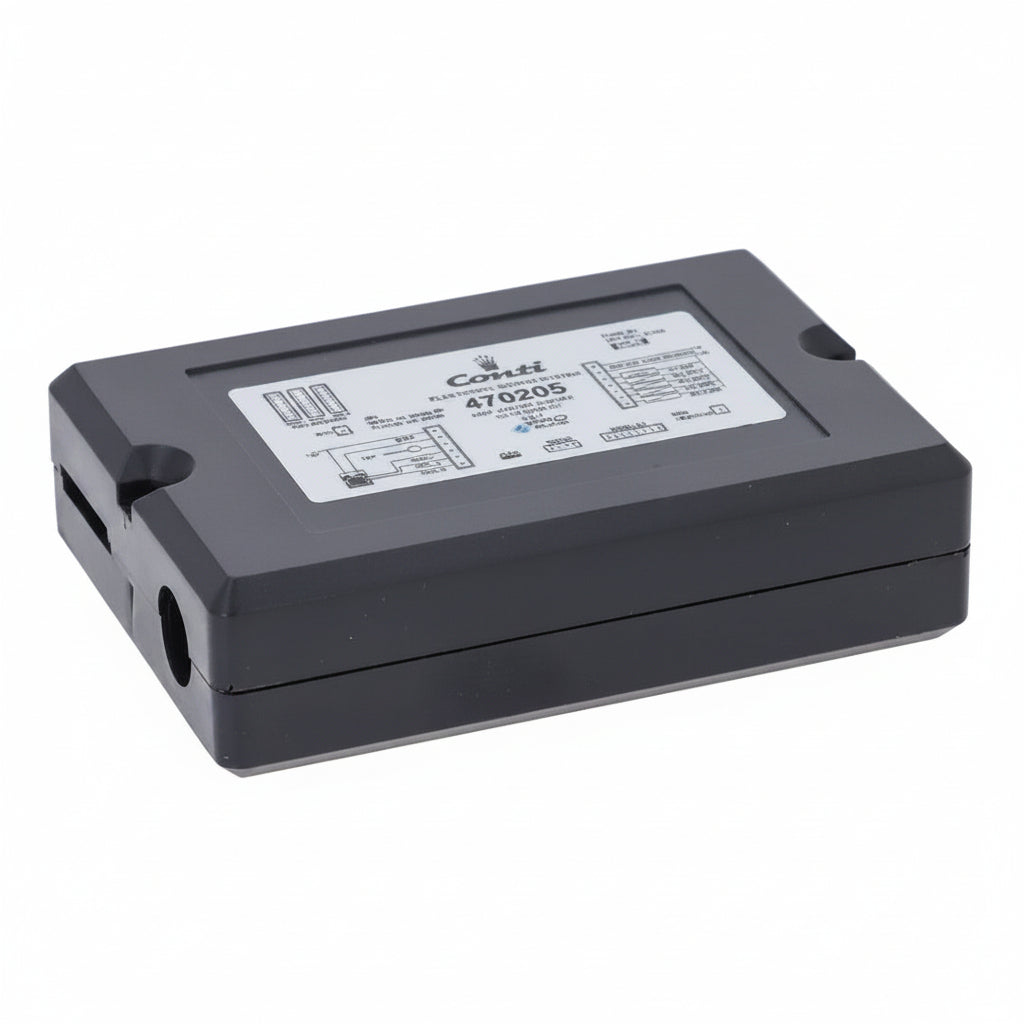

Conti Espresso Machine Control Board 470205 – PCB 10.10.0059.02 v2.3 Replacement

What Is This Control Board?

This is a genuine replacement main control board (PCB) for Conti commercial espresso machines. Part number 470205, code 10.10.0059.02 v2.3, this board manages the machine’s core electronic functions including temperature control, pump operation, and group timing. It is a direct OEM replacement for the models listed below.

Compatible Conti Models

• Conti CC100 Compact
• Conti CC100 Standard
• Conti Montecarlo
• Conti SSK2

Part Details

• Part number: 470205
• Code number: 10.10.0059.02
• Version: v2.3
• Type: Main control board / PCB
• Brand: Conti

Symptoms of a Faulty Control Board

• Machine not powering on or randomly shutting down
• Incorrect or erratic temperature readings
• Groups not activating or stopping mid-extraction
• Display errors or blank screen
• Machine behaving inconsistently despite other components testing correctly

Before Replacing the Control Board

A control board is a high-value component — before ordering, we recommend ruling out simpler causes:

• Check fuses and power supply voltage
• Test the temperature probe (PT100 or thermocouple) for correct resistance
• Inspect wiring harness connectors for corrosion or loose pins
• Confirm the issue persists after a full power cycle

How to Replace a Conti Control Board

1. Isolate the machine from power completely before opening the casing
2. Photograph all wiring connections before disconnecting anything
3. Remove the existing board by unscrewing the mounting points and disconnecting all connectors
4. Transfer any jumper settings or DIP switch positions from the old board to the new one
5. Fit the replacement board, reconnect all wiring per your photos, and power on
6. Recalibrate temperature settings if required after installation

Control board replacement is best performed by a qualified espresso machine technician. Contact us if you need installation guidance.
