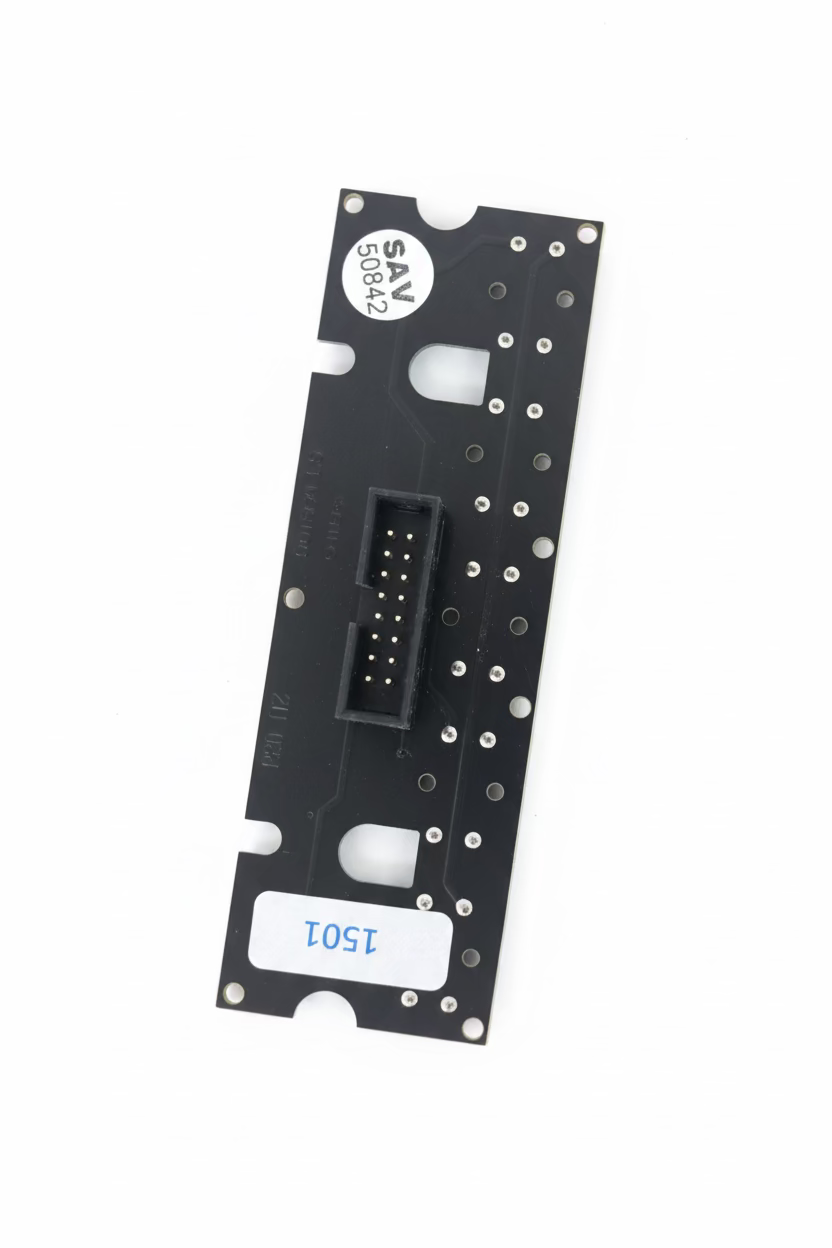

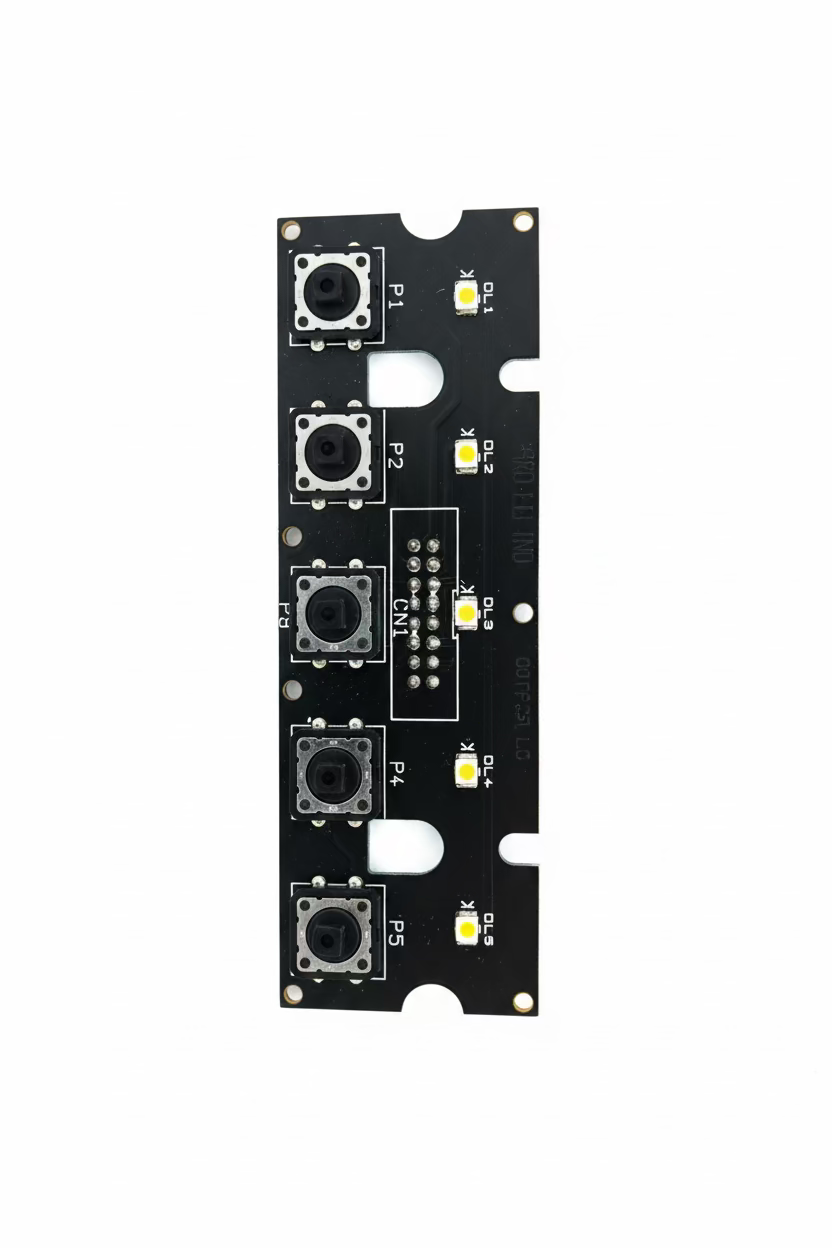

Conti CC100 Coffee Machine Touchpad – NL TC

Conti CC100 Coffee Machine Touchpad – NL TC

OEM-specification replacement touchpad for the Conti CC100 commercial coffee machine, compatible with NL TC variants. The touchpad is the primary user interface on the CC100, providing baristas with dose selection, continuous brew, and hot water controls. When the touchpad fails, the machine becomes partially or fully unresponsive to input.

Compatible Models

Part Details

• Brand: Conti
• Compatible Model: CC100 NL TC
• Type: Touchpad (user interface panel)
• Weight: 0.4 kg
• Note: Confirm your CC100 variant before ordering. Contact Bear Coffee Machine if unsure.

Conti CC100 Touchpad Not Responding? A Short Maintenance Guide

A non-responsive or partially working touchpad is one of the most common user-interface faults on the Conti CC100. Here’s how to diagnose the issue and determine whether the touchpad is the root cause.

What Does the Touchpad Control on the Conti CC100?

The touchpad sends dose and function commands to the CC100’s main control board. Each button press signals the board to activate the pump, count flow pulses, and stop dispensing at the programmed volume. A faulty touchpad breaks this communication, resulting in missed doses, unresponsive buttons, or a completely dead panel.

Signs the Touchpad Needs Replacing

• One or more buttons not responding — pressing a dose or hot water button produces no pump activation or group response.
• Inconsistent or incorrect doses — the machine dispenses a different volume each time despite unchanged programming, suggesting the touchpad is sending erratic signals.
• Completely unresponsive panel — the machine powers on but no buttons on the touchpad produce any response. Check the ribbon cable connection before condemning the touchpad.
• Intermittent faults — the touchpad works correctly sometimes but fails randomly, often pointing to a deteriorating membrane contact or a loose connector.

Ribbon Cable Check First

Before ordering a replacement touchpad, inspect the ribbon cable or connector harness linking the touchpad to the main control board. A loose, kinked, or corroded cable is a common and inexpensive cause of touchpad faults. Reseat the connection carefully and retest before replacing the touchpad itself.

Installation Note

Touchpad replacement on the Conti CC100 involves accessing the machine’s internal wiring. This work is recommended for a qualified technician. Always isolate the machine from mains power before carrying out any internal repairs.

Frequently Asked Questions

What is the NL TC variant of the Conti CC100?

NL TC refers to a specific touchpad and control configuration on the Conti CC100 range. If you are unsure which variant your machine uses, check the model label on the machine or contact Bear Coffee Machine with your serial number before ordering.

Will this touchpad work on other Conti models?

This touchpad is listed for the Conti CC100 NL TC. Compatibility with other Conti models is not confirmed. Contact Bear Coffee Machine to verify before ordering.

Do you ship Australia-wide?

Yes. Bear Coffee Machine ships to all Australian states and territories with fast dispatch.
