Coffee Machine Boiler & Pump Pressure Gauge 60mm – Futurmat & Gaggia

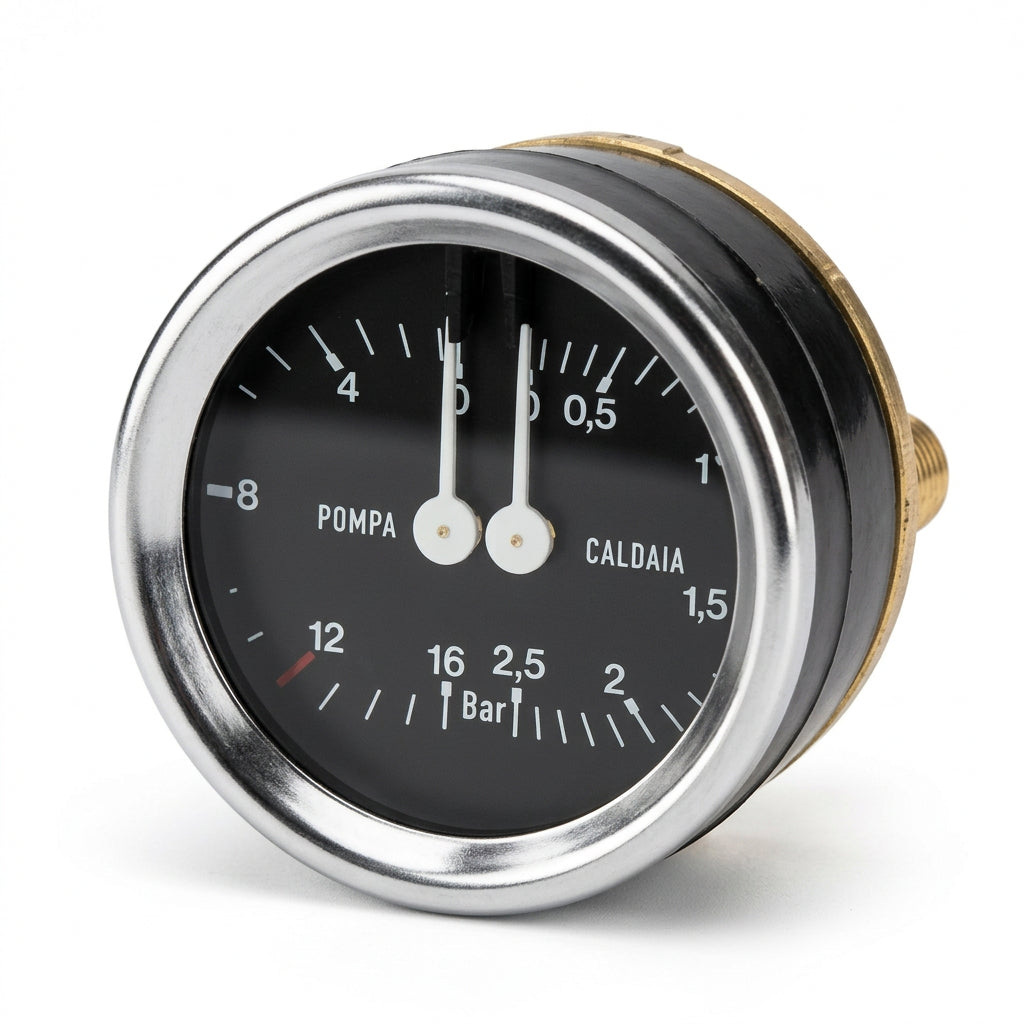

60 mm Boiler and Pump Pressure Gauge

Replacement dual-scale coffee machine pressure gauge for monitoring boiler and pump pressure. This version has a 60 mm body, 65 mm rim, scales of 0–2.5 bar and 0–16 bar, and listed 1/8" male connections. Supplied with a spacing ring.

Specifications

• Component: boiler and pump pressure gauge
• Scales: 0–2.5 bar and 0–16 bar
• Body diameter: 60 mm
• Rim diameter: 65 mm
• Listed connections: 1/8" male
• Included: spacing ring

Listed model compatibility

• Futurmat: Ariete, E61, Milady, Ottima Evo 2G and Rimini
• Gaggia: Bella and Nera
• Italcrem: Capri
• Mairali: Arianne and Giulietta
• Visacrem: Brava, Nera and Ottima 2.0 2G
• Quality Espresso: Ottima

Check before ordering

Compare the body and rim diameters, pressure scales, mounting arrangement, connection positions and thread specification with your original gauge. The listing specifies 1/8" male connections but does not identify the thread standard. Confirm the fitting requirements before purchase.

Model compatibility can vary by production version. The Futurmat E61 entry does not indicate universal compatibility with every machine using an E61 group. Contact Bear Coffee Machine with your machine details and photos of the original gauge and connections if you need help identifying the replacement.

Installation and safety

Have a qualified coffee machine technician confirm suitability, install the gauge and check for leaks and correct readings. Disconnect mains power, allow the machine to cool and fully depressurise it before opening pressure connections.

Frequently asked questions

What pressure ranges does this gauge display?

The two listed scales are 0–2.5 bar and 0–16 bar for boiler and pump pressure monitoring. These are measurement ranges, not recommended machine operating settings.

Is the gauge 60 mm or 65 mm in diameter?

The body diameter is 60 mm and the rim diameter is 65 mm. Compare both dimensions and the mounting arrangement to your original gauge.

What connection size does it use?

The listed connection size is 1/8" male. The thread standard is not specified; confirm it against your original fittings before ordering.

Does the pressure gauge include a spacing ring?

Yes. A spacing ring is included in the existing product specification.

Will replacing the gauge fix low pressure?

A replacement gauge is appropriate when the gauge itself is faulty. It does not resolve an underlying pressure problem. Have a technician establish whether the reading or the machine's pressure system is at fault.
