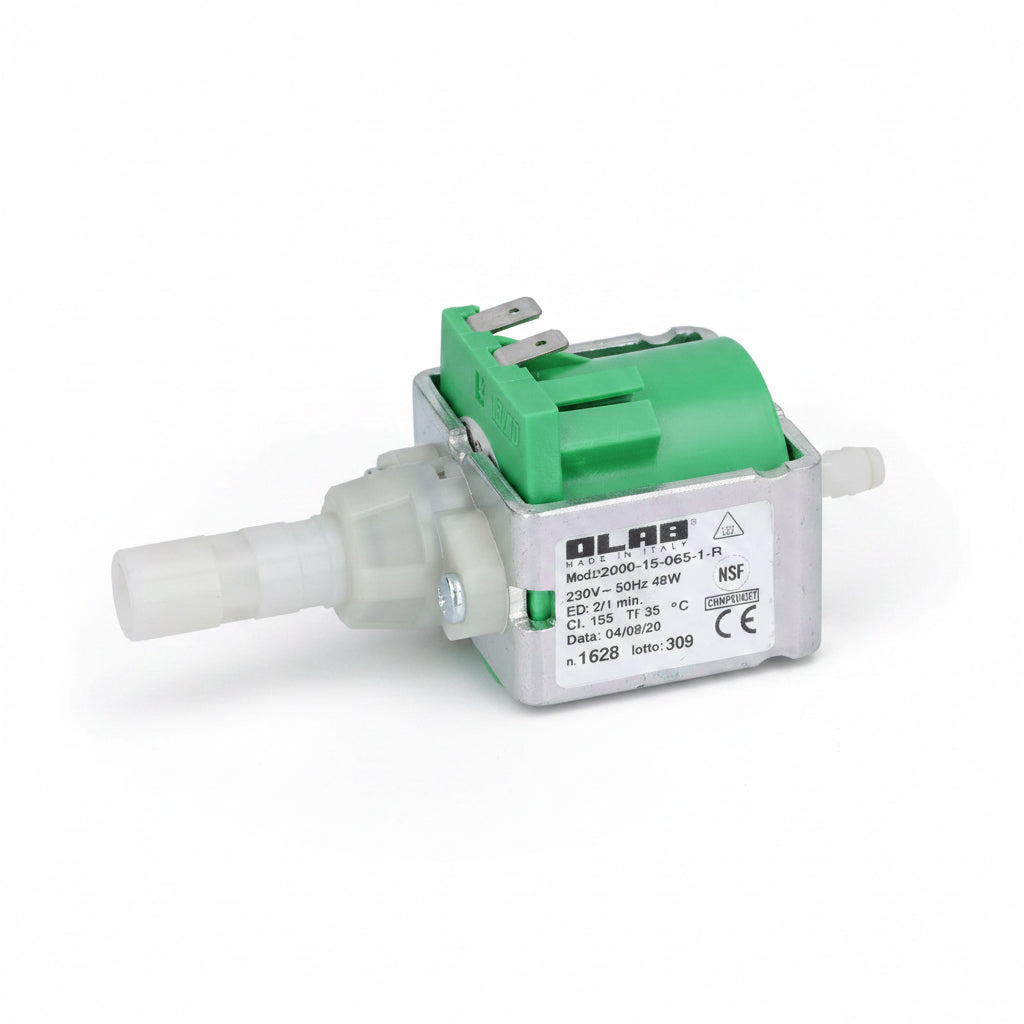

Elba 969 Coffee Machine Vibratory Pump – OLAB EP5 230V 48W (22000-15-065-1-H)

Elba 969 Coffee Machine Vibratory Pump – OLAB EP5 230V 48W

Replace a faulty vibratory pump on your Elba 969 espresso machine with this OEM-spec OLAB EP5 replacement. The vibratory pump pressurises water from the tank or mains supply and delivers it to the boiler and group head at the correct brew pressure.

Specifications

• Compatible Model: Elba 969
• Brand: OLAB
• Model: EP5 (22000-15-065-1-H)
• Voltage: 230V
• Frequency: 50Hz
• Power: 48W
• Body: Plastic sleeve
• Certifications: NSF, CE
• Condition: New / OEM quality
• Vendor: Elba

Symptoms of a Faulty Vibratory Pump

• Machine not building pressure during extraction
• Pump making loud or unusual noise
• Pump running but no water flow
• Machine leaking at pump connections
• Pump not activating when brew cycle starts

Frequently Asked Questions

What is a vibratory pump?

A vibratory pump (also called a solenoid pump) uses electromagnetic vibration to move a piston back and forth, drawing water in on one stroke and pushing it out under pressure on the other. OLAB pumps are widely used in commercial and semi-commercial espresso machines.

Is this NSF certified?

Yes — this OLAB EP5 pump is NSF certified, meaning it meets food safety standards for contact with drinking water. It is also CE certified for European electrical safety compliance.
