How to Remove the Case on a Quick Mill Rubino Coffee Machine

Need to remove the case on a Quick Mill Rubino? This guide shows the basic screw locations and the panel removal sequence. You’ll need a Phillips screwdriver and the video below for a visual reference.

Safety first: Turn the machine off, unplug it from the power outlet and let it cool completely before removing any panels. Do not open the case while the machine is connected to power. Internal components may still be hot, and electrical repairs should be handled by a qualified technician.

Tools needed

• Phillips screwdriver

Remove the Rubino case

1. Make sure the machine is switched off, unplugged and fully cool.

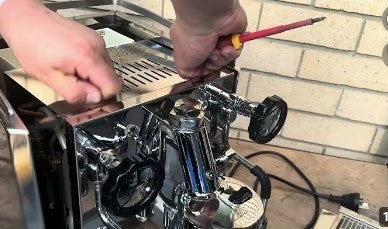

2. Remove the two screws on the top of the case with a Phillips screwdriver. Keep the screws together somewhere safe.
3. Carefully turn or position the machine to reach its underside without pulling or straining the power cord.
4. Remove the four screws on the bottom of the case.
5. Once all six screws are out, carefully lift or slide the panel away. If it catches or resists, stop and check for a remaining fastener rather than forcing it.

Watch the video

Use this video as a visual reference for removing the Quick Mill Rubino case:

Reinstall the panel by aligning it carefully and replacing the two top screws and four bottom screws. Do not overtighten. Before reconnecting power, make sure no tools or loose screws are left inside the case. If you’re opening the machine to diagnose or repair an internal fault, consult the service information for your exact model and use a qualified technician for electrical work.

Need help with your Quick Mill?

If you’re unsure about removing the case or what to do next, contact Bear Coffee Machine with your machine model and a description of the issue.
