ECM/Profitec Coffee Machine Anti-Vacuum Valve: Hissing Sound, Steam Won't Build Up, Tank Draining Fast — How to Replace It
🛒 Shop Replacement Anti-Vacuum Valves
Your ECM espresso machine is making a persistent hissing sound, steam pressure isn't building up properly, and you've noticed the water tank emptying faster than usual — with the machine filling itself more frequently than before. These four symptoms together point to one specific component: the anti-vacuum valve.

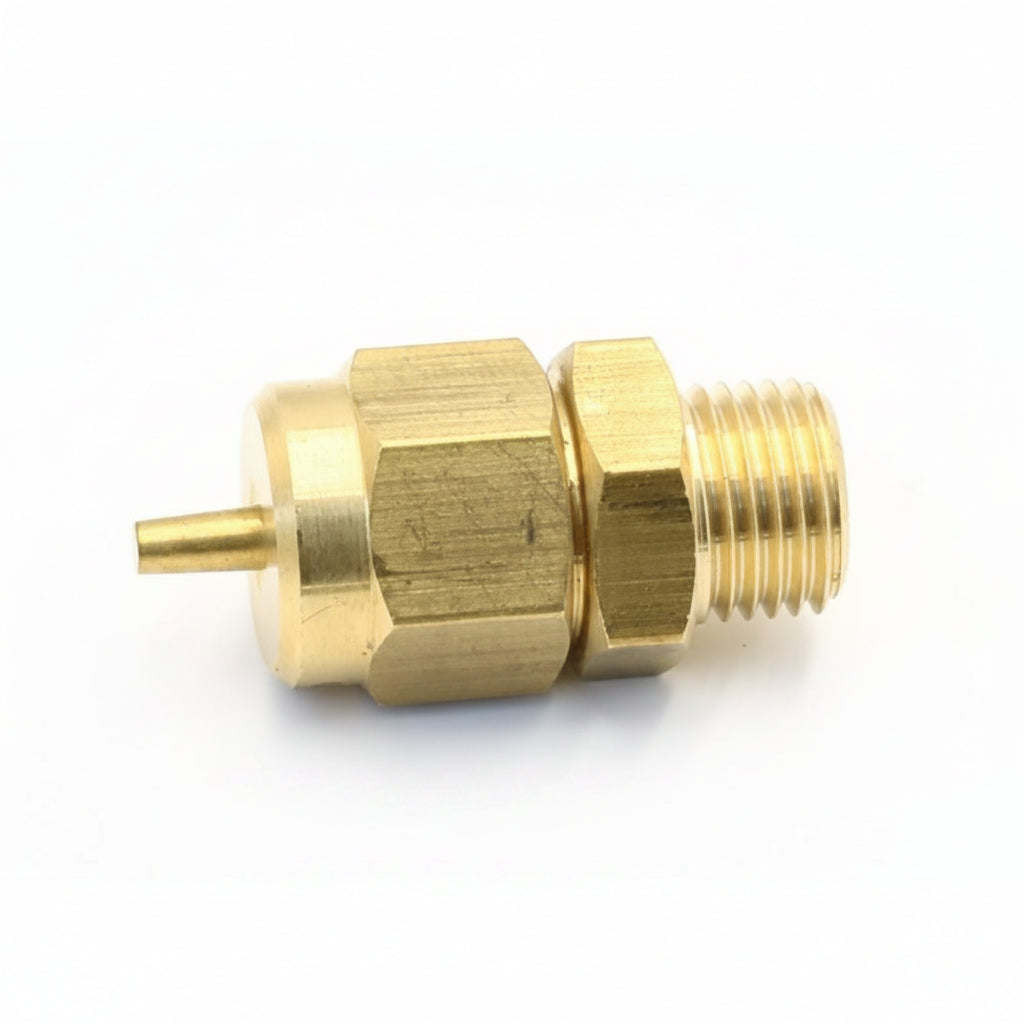

The anti-vacuum valve (also called a vent valve or anti-siphon valve) is a small one-way valve fitted to the boiler. Its job is to prevent a vacuum forming inside the boiler as it cools down, allowing a small amount of air in when the machine is switched off. When the valve's internal seal fails, it leaks steam and water continuously during operation — venting boiler pressure, draining tank water, and making that characteristic hissing sound.
The 4 Symptoms of a Failed Anti-Vacuum Valve
- Hissing sound from inside the machine — steam escaping through the failed valve seat continuously while the boiler is at temperature
- Steam pressure won't build up or is lower than normal — boiler pressure is being vented faster than the heating element can maintain it
- Water tank draining faster than before — the vented steam condenses and is lost as water, reducing tank level quicker than normal operation would
- Machine auto-filling more frequently — because tank water is being consumed faster, the machine's autofill pump activates more often to compensate
💡 Note: A hissing sound alone can sometimes be the steam wand O-ring or a loose fitting. The combination of hissing plus reduced steam pressure plus faster tank drain strongly confirms the anti-vacuum valve as the fault.
Watch: How to Replace the ECM Anti-Vacuum Valve
🛒 Order the Replacement Valve
How to Replace the Anti-Vacuum Valve — Step by Step
What You'll Need
- Replacement anti-vacuum valve (see products above)
- Adjustable spanner or correct open-ended spanner
- PTFE tape
- Towel to catch residual water
Step 1 — Switch Off, Unplug, and Turn Off Water
Power the machine off at the main switch and unplug it from the wall. Turn off the water supply. Allow the machine to cool fully — at least 30–45 minutes. The boiler is under pressure and extremely hot during operation.
Step 2 — Release Boiler Pressure
Once cool, open the steam wand briefly to release any residual pressure from the boiler. You'll hear a short hiss as pressure drops. Once it stops, the system is safe to work on.
Step 3 — Remove the Side Panel
Using a Phillips head screwdriver, remove the screws securing the side panel of your ECM machine. Lift the panel off carefully and set it aside to access the boiler and valve.
💡 Tip: Place a towel under the boiler area before removing the valve — there will be residual water in the boiler that will drip when the valve is unscrewed.
Step 4 — Locate the Anti-Vacuum Valve
The anti-vacuum valve is a small brass valve fitted directly to the boiler body, typically at the top. It will have a small outlet tube or drain port. On ECM Mechanika and Technika models it is usually accessible once the side panel is removed. Look for scale deposits or moisture around the valve body — this confirms it as the leak source.
Step 5 — Remove the Old Valve
Using a spanner, carefully unscrew the anti-vacuum valve from the boiler fitting in an anti-clockwise direction. Have a towel ready to catch any water that drips from the boiler port. Once removed, inspect the boiler thread for scale or damage and clean if needed.
Step 6 — Fit the New Valve
Apply 2–3 wraps of PTFE tape to the threads of the new valve in a clockwise direction. Screw the new valve into the boiler fitting by hand first to avoid cross-threading, then tighten firmly with a spanner. Do not overtighten — the brass fitting can crack. Reattach any drain tube if applicable (P2561 model).
Step 7 — Refit Panel and Test
- Refit the side panel and secure all screws
- Turn the water supply back on
- Plug the machine in and power it on
- Allow to heat to full operating temperature
- Listen for hissing — it should be gone
- Check steam pressure builds to normal operating level
- Monitor tank water consumption over the next few uses — autofill frequency should return to normal
- Inspect around the new valve for any leaks
Frequently Asked Questions
Which anti-vacuum valve does my ECM machine need — with or without drain?
ECM Mechanika and Technika models typically use the standard anti-vacuum valve without a drain port. The P2561 (with drain, 1/4" x 1/4" male) suits specific ECM and Profitec models that route condensate through a drain tube. A stainless steel version is also available if you prefer it over brass. Check the valve currently fitted to your machine — if it has a tube attached to a side port, you need the drain version. If unsure, contact us with your model name and we'll confirm the correct part.
Can I keep using the machine while the valve is leaking?
We recommend against extended use. A leaking anti-vacuum valve wastes significant water and energy, prevents the machine from reaching full steam pressure, and the escaping steam can cause moisture damage to internal components over time. Replace the valve as soon as possible.
Will replacing the valve fix the hissing sound completely?
In almost all cases, yes — if the hiss is coming from inside the machine at the boiler area. If a faint hiss persists after the valve replacement, check the steam wand O-ring and the group head gasket as secondary sources.
How long does this repair take?
For someone comfortable with basic tools, the valve replacement takes 20–30 minutes including cool-down time. The most important step is allowing the machine to cool fully before starting — do not rush this.
