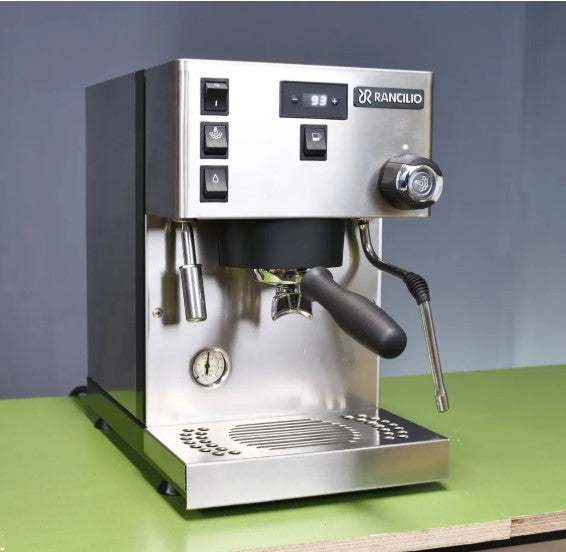

Rancilio Silvia X Pro: Slow Water Flow from Group Head — 4 Things to Check
Slow or restricted water flow from the group head on your Rancilio Silvia X Pro is a frustrating problem — but it's almost always fixable at home. There are four main culprits, and they follow a clear diagnostic order from easiest to most involved. Work through them in sequence before assuming the worst.
⚠️ Safety First
Always turn off and unplug your Rancilio Silvia X Pro before inspecting any internal components. Allow the machine to cool fully before opening.
Cause 1 — Blocked Shower Screen (Start Here)
The shower screen is the first thing to check. It's the most common cause of slow flow and the easiest to fix. Coffee grounds, oils, and fine particles accumulate in the screen's holes over time, progressively restricting water distribution to the puck.
On the Rancilio Silvia X Pro, the shower screen sits directly above the portafilter in the group head and is held in place by a centre screw.
How to Clean the Shower Screen — Backflush Method
- Insert a blind basket (backflush disc) into your portafilter.
- Add a small amount of backflush detergent (e.g. Cafiza or equivalent).
- Lock the portafilter into the group head.
- Run the brew cycle for 10 seconds on, 10 seconds off — repeat 5 times.
- Remove the portafilter and run a 10-second flush with no basket to rinse.
- Repeat the cycle with clean water only (no detergent) to fully flush residue.
After backflushing, remove the shower screen screw and screen and inspect them directly. If the holes are visibly blocked or the screen is deformed, replace it.
Test: Run a blank shot (no coffee, no basket) and observe the flow. If it's now even and strong, the screen was the issue.
Cause 2 — Blocked Group Solenoid Restrictor
If cleaning the shower screen doesn't restore flow, the group solenoid is the next suspect. The Rancilio Silvia X Pro uses a 3-way solenoid valve to control water flow to the group head and vent pressure after extraction. Inside the solenoid body sits a small brass restrictor — a tiny orifice that regulates flow rate. This restrictor is notorious for becoming blocked with limescale and coffee debris.
How to Access and Clean the Solenoid Restrictor
- Unplug the machine and allow it to cool completely.
- Remove the front panel — there are two screws on the front of the machine. Remove them and carefully pull the panel away to expose the internal components.
- Locate the solenoid valve — it sits connected to the boiler with water fittings and two electrical spade connectors.
- Photograph the wiring before disconnecting anything.
- Disconnect the electrical connectors and unscrew the water fittings. Have a towel ready for residual water.
- Disassemble the solenoid body — unscrew the solenoid coil from the valve body. Inside you will find the restrictor: a small brass or plastic insert with a pinhole orifice.
- Clean the restrictor — soak it in descaling solution (citric acid or white vinegar) for 15–30 minutes. Use a fine pin or needle to carefully clear the orifice. Do not enlarge the hole.
- Reassemble in reverse order. Reconnect water fittings with PTFE tape on the threads (2–3 wraps) and reattach the electrical connectors.
-
Refit the front panel and test.
Tip: While the solenoid is apart, inspect the rubber seal/o-ring inside the valve body. If it's hardened or deformed, replace it at the same time.
Cause 3 — Pump Failure
If the solenoid and shower screen are both clear but flow is still weak, the pump may be failing. The vibration pump in the Rancilio Silvia X Pro is responsible for generating the 9 bar of pressure required for espresso extraction. A worn or failing pump will struggle to build or maintain pressure.
Signs of pump failure:
- Pump sounds different — louder, weaker, or irregular compared to normal
- Pressure gauge (if fitted) reads significantly below 9 bar during extraction
- Flow is slow even with a clean shower screen and clear solenoid
- Machine takes much longer than usual to build pressure
Pump replacement on the Silvia X Pro is a straightforward job — the pump is accessible once the front or side panel is removed, and it connects via two water fittings and two electrical terminals.
Cause 4 — Expansion Valve Leaking (Pressure Not Holding)
The expansion (OPV) valve regulates system pressure and releases excess pressure safely. If the expansion valve is worn, its internal seal may be leaking — bleeding pressure away internally rather than building it at the group head. This results in slow, weak flow even when the pump is working correctly.
Signs of a leaking expansion valve:
- Slow flow despite a functioning pump
- Water dripping into the drip tray continuously during extraction (internal bypass)
- Pressure builds slowly and drops off mid-shot
- Machine worked fine, then gradually got worse over time
The expansion valve can sometimes be cleaned and its spring/seal replaced, but in most cases replacement of the full valve assembly is the most reliable fix.
Diagnostic Summary
| Cause | Likelihood | DIY? | Action |
|---|---|---|---|
| Blocked shower screen | 🔴 Most common | ✅ Easy | Backflush, inspect, replace if needed |
| Blocked solenoid restrictor | 🟠 Common | ⚠️ Moderate | Remove front panel, disassemble, clean |
| Pump failure | 🟡 Less common | ⚠️ Moderate | Test pressure, replace pump |
| Expansion valve leaking | 🟡 Less common | ⚠️ Moderate | Inspect, clean or replace valve |
Shop Rancilio Silvia Replacement Parts
We stock genuine and compatible replacement parts for the Rancilio Silvia range. Click any part below to check compatibility and order:
Not sure which part you need? Contact us with your machine model and fault description and we'll point you in the right direction.
Frequently Asked Questions
How often should I backflush my Rancilio Silvia X Pro?
For home use (1–3 shots per day), backflush with detergent once a week and with water only after every session. Regular backflushing prevents shower screen blockage and keeps the solenoid restrictor clear.
Can I clean the solenoid restrictor without replacing the solenoid?
Yes — in most cases a thorough soak in descaling solution and a careful clear with a pin is sufficient. Only replace the solenoid if the restrictor is physically damaged or the valve body seal has failed.
How do I know if it's the pump or the expansion valve causing slow flow?
If the pump sounds normal but flow is still weak, suspect the expansion valve first — it's bleeding pressure before it reaches the group. If the pump sounds strained or different, test the pump. A pressure gauge on the group head is the most reliable diagnostic tool.
Is this repair suitable for a home user?
Steps 1 and 2 (shower screen and solenoid cleaning) are well within DIY capability with basic tools. Steps 3 and 4 (pump and expansion valve) require a little more confidence with appliance repair but are still achievable at home. Always unplug and cool the machine before opening it.
